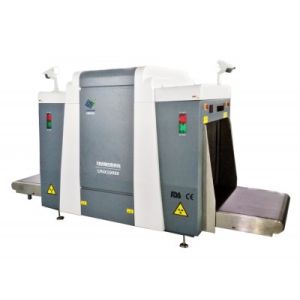

Express / Railway X Ray Scanning Machine , X Ray Baggage Scanner UNX10080

    Buy cheap Express / Railway X Ray Scanning Machine , X Ray Baggage Scanner UNX10080 from wholesalers

    Buy cheap Express / Railway X Ray Scanning Machine , X Ray Baggage Scanner UNX10080 from wholesalers
    • Buy cheap Express / Railway X Ray Scanning Machine , X Ray Baggage Scanner UNX10080 from wholesalers
    • Buy cheap Express / Railway X Ray Scanning Machine , X Ray Baggage Scanner UNX10080 from wholesalers
    • Buy cheap Express / Railway X Ray Scanning Machine , X Ray Baggage Scanner UNX10080 from wholesalers
    • Buy cheap Express / Railway X Ray Scanning Machine , X Ray Baggage Scanner UNX10080 from wholesalers

    Express / Railway X Ray Scanning Machine , X Ray Baggage Scanner UNX10080

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : UNX10080
    Certification : CE, FDA
    Price : can negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 300 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Express / Railway X Ray Scanning Machine , X Ray Baggage Scanner UNX10080

    Express / Railway X-Ray Inspection Equipment UNX10080


    The UNX Series X-ray security detection machine release is a dynamic project associated with our Unicomp Technology Research and Development Manufacturing Division. Our full range of security machines are designed to address multiple safety requirements including internal detection of luggage, backpacks and express courier packages. The UNX Series machines are also effective for port logistics transportation, civil aviation, customs control, conference centers, hotels, large cultural and sports activities, plus express logistics. All of our machine platforms include state of the art industrial designs, high tech appearance and the most advanced Cloud traceability software in the industry.



    Emission: Extremely low radiation dose adhering to all International Safety Standards.


    Environment: New advanced lead curtain pressure membrane technology effectively eliminating secondary lead (Pb) pollution.


    Power: Penetration equivalence of up to a 34mm steel plate.


    Operation: Intuitive operator interface and media interface for quick learning and optimization of the machine.


    Software/Imaging: Robust software platform with intuitive control interface. Clean and crisp image presentation meeting all International Standards.


    Traceability: Cutting edge Cloud traceability functions from initial product scan to final customer acceptance ensuring full safety throughout the process.


    Support: A full suite of customer support including; remote technical support, direct access to the Cloud, and real time monitoring of machine technical functions/operation.

    The UNX Series X-ray security detection machine release is a dynamic project associated with our Unicomp Technology Research and Development Manufacturing Division. Our full range of security machines are designed to address multiple safety requirements including internal detection of luggage, backpacks and express courier packages. The UNX Series machines are also effective for port logistics transportation, civil aviation, customs control, conference centers, hotels, large cultural and sports activities, plus express logistics. All of our machine platforms include state of the art industrial designs, high tech appearance and the most advanced Cloud traceability software in the industry.

    Emission: Extremely low radiation dose adhering to all International Safety Standards.
    Environment: New advanced lead curtain pressure membrane technology effectively eliminating secondary lead (Pb) pollution.
    Power: Penetration equivalence of up to a 43mm steel plate.
    Operation: Intuitive operator interface and media interface for quick learning and optimization of the machine.
    Software/Imaging: Robust software platform with intuitive control interface. Clean and crisp image presentation meeting all International Standards.
    Traceability: Cutting edge Cloud traceability functions from initial product scan to final customer acceptance ensuring full safety throughout the process.
    Support: A full suite of customer support including; remote technical support, direct access to the Cloud, and real time monitoring of machine technical functions/operation.


    System ParametersDimensions3250mm(L)×1410mm(W)×1720mm(H)
    Tunnel Size1000mm(W)×800mm(H)
    Weight1300kg
    Conveyor Height345±30mm
    Inspection Speed0.22m/s
    Max.Load Weight200Kg(Even distribution)
    Resolution40AWG (ф=0.0787mm metal wire)
    Penetration40mm (Typical),34mm (Standard)
    Radiation SafetyMeets film safety ISO 1600
    X-ray Dose Rate<0.12μGy/h (5cm away from the housing)
    X-ray GeneratorAnode Voltage160Kv
    Cooling CycleOil Cooling 100%
    Single Inspection Dose<2.1 μGy
    Imaging SystemX-ray DetectorPhotodiode
    Gray Level4096
    Monitor19’’
    Image Processing SystemImage Enhancement

    *Black and white *Inverse *High-energy penetration *Low-energy penetration *Super-enhancement *Elimination of organic or inorganic substances *Variable absorption rate

    *Pseudo-color *Arbitrary selection ( user selected ROI zoom ) ( 64X image magnification/no loss of resolution )

    RecognitionOrange for organic matter, blue for inorganic, green for metal and compound
    Image Playback50 inspected images could be replayed
    Storage CapacityNo less than 100 thousand pieces of image
    Additional FeaturesStandard Functions*Date/time display *Baggage counter *User management *System operation clock *X-ray on clock *POST *Image storage & retrieval *Diagnosis & maintenance *Dual-scan *Image recognition trainging *Cloud data storage and analysis
    Optional Functions*High density area alarm *Explosives and drugs auxiliary examination *Dangerous goods image insertion
    Installation RequirementsOperation/Storage Temperature0~40℃,-5~50℃
    Humidity10%~90%(No condensation)
    Power Supply220VAC±5% 50Hz/60Hz

    UNX10080.pdf
