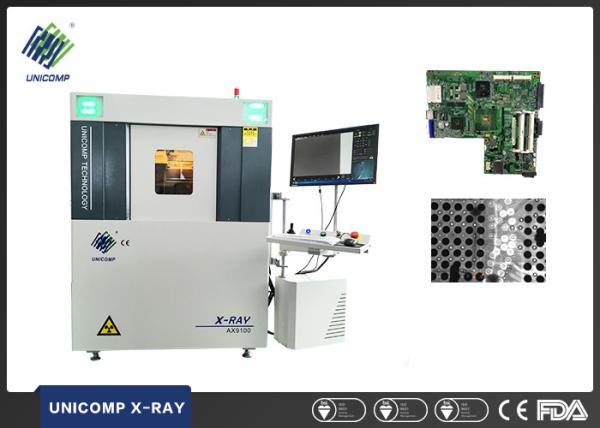

High-quality PCB inspection system BGA X Ray Inspection Machine

X-Ray Inspection System is a full featured high-performance x-ray inspection system with an unbeatable price to performance ratio and includes all of the advanced features you would expect to find on a much more expensive x-ray inspection system.

Features:

● 90-130KV 7μm X-Ray tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.
● 7 axis linkage, 70 degree tilt detection.
● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.

NC Programming

1.A simple mouse clicks operation write test procedures

2.The stage can be X, Y director positioning; X-ray tube and detector Z positioning.

3.Software setting voltage and current

4.Image settings: brightness, contrast, auto gain and exposure

5.The user can set the program switch pause time

6.Anti-collision system can meet the maximum tilt and observe objects

Test Images:

X-ray Intelligent Detection System Integrator (Testing Equipment + Industrial Cloud Tracking System)

Shenzhen Unicomp Technology was incorporated in 2002. It is a national-level high-tech enterprise which involved in the R&D and manufacturing of X-ray technology and intelligent detection equipment. Unicomp has become the leading enterprise in world wide X-ray industry. This technology is widely applied in Public Security, EV Lithium battery,SMT PCBA EMS, IC, Semiconductor, Solar Photovoltaic, LED, Connector, Automotive Casting Parts, Wheel, Tires, Pipe welding, Food and Beverage, Pressure vessel industry etc.

Unicomp Technology has a dedicated pool of local and foreign senior professional R&D engineers with extensive experience in high-level science and technology. The company is undertaking major national special project (namely “02” project and “863” project) and X-ray detecting equipment R&D in new fields of application. It also works closely with The Chinese academy of sciences, Tsinghua University, etc. to advance the core technology of X-ray imaging. Presently Unicomp has submitted a total of 432 patents with 319 authorized. Unicomp has obtained numerous management system certifications, such as ISO 9001 quality management system, ISO 14001 environmental management system, OHSAS18001 occupational health & safety management system, as well as ISO27001 information safety management system.

Today, Unicomp Technology has three R&D /Manufacturing sites exceeding 60,000㎡ respectively located at Wuxi/Jiangsu Province, Shenzhen/Guangdong Province, and Chongqing. Our sales and service centers are located all across China including Beijing, Shenyang, Tianjin, Xi'an, Qingdao, Wuhan, Chengdu, Ningbo, Xiamen and etc. The company has also penetrated into the international market with sales and service support in the USA, Canada, Mexico, Brazil, Germany, United Kingdom, France, Italy, Spain, Australia, Hungary, Romania, Russia, Poland, Uzbekistan, South Africa, Morocco, Tunisia, Turkey, UAE, India, Singapore, Malaysia, Thailand, Vietnam, Philippines, Taiwan, Hong Kong. This international connection has helped Unicomp to be recognized as a Global Force in today’s X-ray industry. Today “UNICOMP” is a hallmark brand in the industry both at home and abroad.

Unicomp Technology upholds its Integrity, Deploitation, and Excellence in the business is committed to meeting the highest level of International Standards and promises to be a responsive partner with all of our customers. This philosophy has enabled Unicomp to generated a strong Global customer base of many International Renowned companies including Flextronics, Foxconn, JABIL, Elcoteq, Philips, GM, Bosch, TRW, Delphi, ABB, Continental, Creation technologies, Salcomp, Selcom, Computime, Emerson, LEAR, V.S. Industy, Microtronics, SVI, Toshiba, NEC, Canon, Olympus, OMRON, SANYO, Fujitsu, Honda Lock, Samsung, LG, Amphenol, Littelfuse, Murata, KEMET, ROHM, Hybrionic, Cooper, ELRAD, Sumida, ELDOR, USI, Inventec, AELTA, PRIVAX, LITEON, Sensata, LuXshare, LENS, AAC Technologies, SANGSHIN ELECOM, Hisense, Skyworth, KONKA, TCL, ZTE, CHANGHONG, WINGTEC, DBG, BYD, VIVO, HIKVISION, GOOD-ARK, DESAY SV, CATL, Panasonic, Sony, Boston Power, BAK, GUOXUAN HIGH-TECH, Sunwoda, Coslight, TENPOWER, BMW, Tesla, Audi, CHANGAN, DONGFENG Motor, Honda, EATON, Turkey MMS, SF Express just to name a few.
