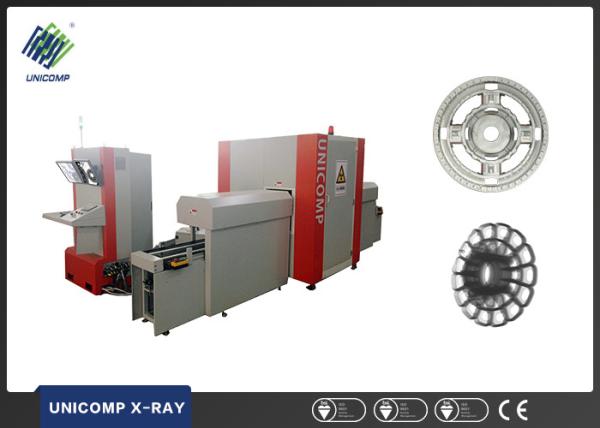

    Strong Penetration Real Time X Ray Equipment Standard Inline Production Line

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : UNC160-C-L
    Certification : CE
    Price : Can Negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Strong Penetration Real Time X Ray Equipment Standard Inline Production Line

    Standard Inline Production Line NDT Real Time X Ray Inspection Equipment


    Features:


    * The implementation of automatic location detection


    * Automatic identification of defect detection


    * The unqualified product identification marking


    * OK and NG are sorting and recognition


    * High contrast, high quality image detection



    Applications:


    Aviation


    Construction


    Manufacturing


    Industrial Plants (Nuclear, Petrochemical, Power, Refineries, Fabrication Shops, etc.


    Pipelines


    Railways


    Food industry


    130KV, 160KV, 225KV,320KV, 450KV, X-ray Detection System


    Pre-Sales Service


    * Inquiry and consulting support.


    * Sample testing support.


    * View our Factory.


    * Freely provide project designing, process designing, choosing suitable equipment for you.


    After-Sales Service


    * The quality guarantee period of our machine is 12 months.


    * Within the quality guarantee period, free parts replacement and corresponding service are available.


    Adjustment the range of X-ray apparatus and image forming apparatus

    600mm~800mm

    Lifting range of arc type detection arm

    0~300mm

    The movable range of the detection platform in the X axis direction

    0~250mm

    The movable range of the detection platform in the Y axis direction

    0~250mm

    Loading capacity of test platform

    ≤10kg

    Right and left swing angle range of arc type detection arm

    ±15°

    Front and back swing angle range of arc detection arm

    ±15°

    Conveying stroke of feeding / discharging manipulator

    875mm

    Operating speed of feeding / discharging manipulator

    About 500mm/s

    Operating speed of feeding / discharging line

    About 262mm/s

    Size of the protective lead room (L * w * h)

    1650mm×2014mm×2097mm (Outer dimension)

    Weight of protective lead room

    About 2.5t

    Maximum size specification of equipment available for inspection

    520mm×464mm×176mm
