    Unicomp NDT X Ray Machine , Premium X Ray Images Inspection System Cabinet

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : UNC450
    Certification : CE
    Price : can negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

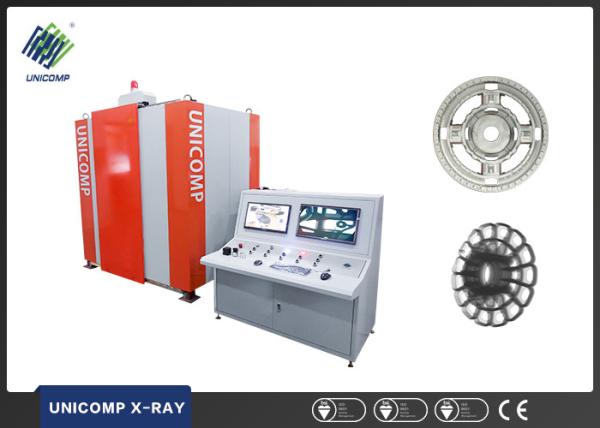

    Unicomp NDT X Ray Machine , Premium X Ray Images Inspection System Cabinet

    NDT X Ray Equipment Premium Image Quality Inspection System Cabinet Unicomp


    Unicomp Technology X-Ray inspection systems division offers state of the art X-ray cabinet systems with the highest performance to price ratio in the industry today. Unicomp has over 15years of experience selling solutions as a leading NDT (non-destructive test) supplier of x-ray inspection equipment into the electronic, materials, and biological markets. Our advanced x-ray systems feature high power micro-focus x-ray sources, high resolution digital detectors, large inspection stages, oblique angle inspection, and all of the manual and automated s/w tools you expect in an advanced system are included.


    Features:


    ● High reliable and long life,low breakdown;


    ● High definition and resolution FPD;


    ● C-arm fixture design enabling five-axis motion detection(optional automatic lift and descend);


    ● Multi-functional workstation,360°rotation and shift;


    ● User friendly software design for easy interfacing can facilitate,customized software ;


    ● High penetration,Voltage up to 450KV,Maximum penetration thickness up to 80mm for "Fe";


    ● Detection area:Φ500*800mm;


    ● Loading weight:100KG.


    System ParametersDimensions2423mm*2294mm*2586mm(L*W*H)
    Equipment weight18.65T
    Power9KW
    Maximum penetration(FE)60mm
    Detection rangeΦ500*800mm
    Load weight150kg
    Work environment5-40° ≤80%HR
    Install powerThree-phase five wire system AC380V
    X-ray leakage dose rate≤2.5uSv/h
    X-ray GeneratorTube voltage450kV
    Power700W/1500W
    Focal size0.4mm/1.0mm
    DetectorImage area215mm x 215mm
    Resolution2.8LP/mm
    Detector ( Selection FPD )Image area250mm x 300mm
    Pixel matrix1792mm*2176mm
    Pixel size139μm
    Frame rate9fps(1x1)30fps(2x2)
    Software FunctionsImage processingBrightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure;move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value
    Image measurementDistance, radius, polygon, angle measurement; arrows and text labels; save the processed image;
    Motion controlSetting the camera rotating screen; exposure time; static,dynamic image display and save, video display and save


    Inspection Images:
