    Portable Directional Ceramic X Ray Flaw Detector NDT Welding Vessel Metal

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : Portable X Ray Flaw Detector
    Certification : CE
    Price : N
    Supply Ability : 100 Sets / Month
    Delivery Time : 10 Working days
    • Product Details
    • Company Profile

    Portable Directional Ceramic X Ray Flaw Detector NDT Welding Vessel Metal

    Portable Directional Ceramic X Ray Flaw Detector NDT Welding Vessel Metal

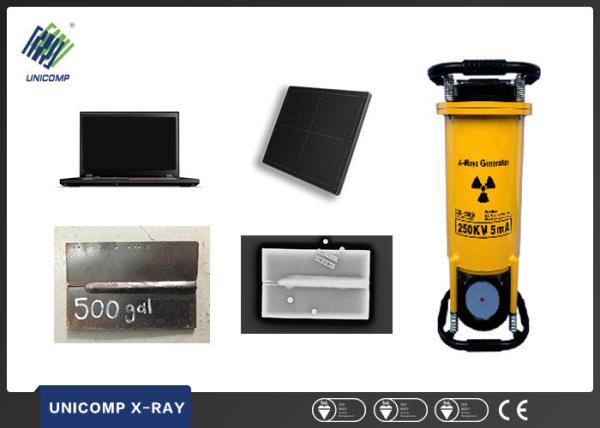

    The portable X-ray Flaw Detector system consists of a generator and X-ray source that are positioned on opposite sides of the target object, plus a laptop computer for controlling the system and analyzing images. The UNX-120P is a next-generation portable x-ray system for checking inner construction of pipeline, pressure vessel, boiler, and various light metal.


    System Features:


    Lower Noise, Lower Radiation, Clear Images


    4-5s Image Acquisition Time


    Outstanding Battery Capacity


    Continuous intervals Detector


    Pseudo-color; Contrast / Brightness


    Magnify, Rotate, Up and down, Left and right mirror image


    Automatic image enhancement


    Positive and negative types; mosaic


    Applications:


    Suitable for national defense, shipbuiding, petroleum, chemical, machinery, aerospace, and construction industries inspect for material such as hull, pipeline, high pressure vessel, boiler, aircraft, vehicles and bridges etc, spare parts welding quatilty, internal defects and various light metal, rubber, ceaminec etc processing quality.


    System Contains:


    ● Portable X-ray source


    ● Cutting edge flat panel detector


    ● 15-inch laptop imaging station


    ● Batteries and charges


    ● Wireless communication


    ● Transport case


    ● Software


    Quality Control


    Ø BSI of ISO9001, ISO14001 & OHSAS18001 certified
    Ø Full process control with IQC, IPQC, FQC and OQA
    Ø FAI confirmation, NG products & RMA control
    Ø Calibration of inspection tools, GR&R analysis
    Ø Products certified by Ministry of Security, CE and FDA
    Ø Stringently abide by SOP requirement
    Ø 8D Corrective Action Report
    Ø SPC technique, quality improvement and CPI plan

    UNX-120P Portable Digital Radiography X-Ray System
    Generator SystemDetector System
    Radiation geometryDirectionalDimension47.74 x 45.36 x 1.84 cm
    Voltage output typeConstant PotentialWeight4.0 kg (incl. battery)
    Output voltage range250KVActive Area43.37 x 35.48 cm
    Output voltage selection step1kVPixel Array2816 x 2304
    Tube current range0.2mA to 1.0mAPixel Pitch154 µm
    Tube current at full output1.0mAGreyscale16 bits
    Tube current selection step0.1mALimiting Resolution3.1 Lp/mm
    Max. anode Dissipation120 WCommunication InterfaceWire or wireless
    X-ray beam angle40 +5 (° )Image Acquisition Time4-5 s
    Focal spot size2.0 x 2.0 mmOperating Temperature Range5-35 ° C
    Operating temperature range-20 to +50 ° CPower Supply100-250V AC
    Recommended Operating temperature5 to +35 ° CRecommended Operating temperature5 to +35 ° C
    Weatherproof levelIP60Frequency50/60 Hz
    Overall dimensions261x 245 x 96 mm3Consumption24 W operating, 8 W standby
    Weight6.5 kg(incl. battery)Safety
    Communication InterfaceWire or wirelessPhysical safety interlock plus key switch
    Penetration15mm FeAudible&Visible warning signs
    Resolution0.40mm (AWG 25)
    cooper wire loop with 10mm Fe
    CE Compliant
    LaptopSystem Features
    ProcessorIntel Core i5-8250ULower Noise, Lower Radiation, Clear Images
    Memory8G DDR4 2400Mhz4-5s Image Acquisition Time
    Hard Drive128G SSDOutstanding Battery Capacity
    Operating SystemEnglish WindowsContinuous intervals Detector
    Package of Whole SystemPseudo-color; Contrast / Brightness
    Overall Dimension602 × 474 × 320mmMagnify, Rotate, Up and down, Left and right mirror image
    Weight24kgAutomatic image enhancement
      Positive and negative types; mosaic
