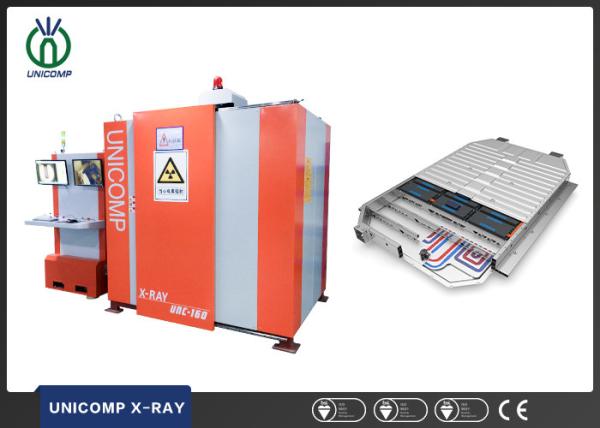

    Fully automated Inline X ray machine Unicomp UNC160 for electric vehicles Li-ion battery housing cracks inspection

    Ask Lasest Price
    Brand Name : Unicomp
    Model Number : UNC160
    Certification : CE
    Price : can negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets per month
    Delivery Time : 30 days after order confirmation
    • Product Details
    • Company Profile

    Fully automated Inline X ray machine Unicomp UNC160 for electric vehicles Li-ion battery housing cracks inspection

    Fully automated Inline X ray machine Unicomp UNC160 for electric vehicles Li-ion battery housing cracks inspection


    System ParametersDimensions2100mm*1549mm*2468mm(L*W*H)
    Equipment weight3.5T
    Power6KW
    Maximum penetration(AL/FE)100mm/20mm
    Detection rangeΦ500*800mm
    Load weight50kg
    Work environment5-40° ≤80%HR
    Install powerThree-phase five wire system AC380V
    X-ray leakage dose rate≤1uSv/h
    X-ray GeneratorTube voltage160kV
    Power480W
    Focal size0.5mm
    DetectorImage area145mm x 145mm
    Resolution3.0LP/mm
    Detector ( Selection FPD )Image area17’’x17’’
    Pixel matrix3072mm*3072mm
    Pixel size139μm
    Frame rate9fps(1x1)30fps(2x2)
    Software FunctionsImage processingBrightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value
    Image measurementDistance, radius, polygon, angle measurement; arrows and text labels; save the processed image;
    Motion controlSpeed adjustment of each moving axis; CNC programming; manual operation
    Additional FunctionSave the detection time of the bulk of the work piece via the CNC programmable control
    No dead angle detection with C-arm five-axis motion detection mechanism
    Servo stepper motor drive to make the operation stability
    Voltage regulator, isolation, filtering, grounding and other protective functions are complete
    Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional)

    Inspection Images:


    Features:


    ● Strong penetration,high reliable,low breakdown, long life;
    ● High definition,resolution FPD;
    ● Multi-functional workstation,360°rotation and shift;
    ● High automation,fast detection speed;
    ● User friendly software design for interfacing and to facilitate,customize software function development requirement.


    Applications:


    ● Cast parts and pressure Vessels

    ● Steel pipe,Cylinder and Wood

    Epoxy Resin Defect Detection
    ● Wheel,Tires and Metal parts
