Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto Rejector

    Buy cheap Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto Rejector from wholesalers

    Buy cheap Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto Rejector from wholesalers
    • Buy cheap Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto Rejector from wholesalers

    Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto Rejector

    Ask Lasest Price
    Brand Name : Unicomp
    Model Number : UNX4015N
    Certification : CE
    Price : USD
    Payment Terms : T/T, L/C
    Supply Ability : 100 pcs per month
    Delivery Time : 45 work days
    • Product Details
    • Company Profile

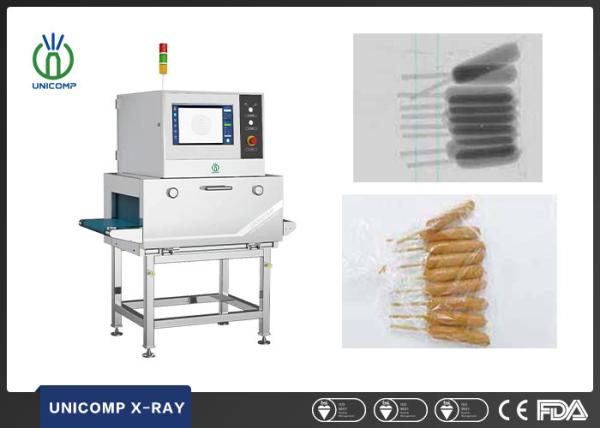

    Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto Rejector

    Food X-Ray detection equipment for dry pack food inspection with auto rejector


    Application


    UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.


    Features

    • Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto RejectorEasy to Operate: one button start&stop, optional default product

    • Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto RejectorProvide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product

    • Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto RejectorSensitivity adjustment, alarm management, powerful data statistics report

    • Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto RejectorThe detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI

    • Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto RejectorTool free for conveyor belt and protective curtains

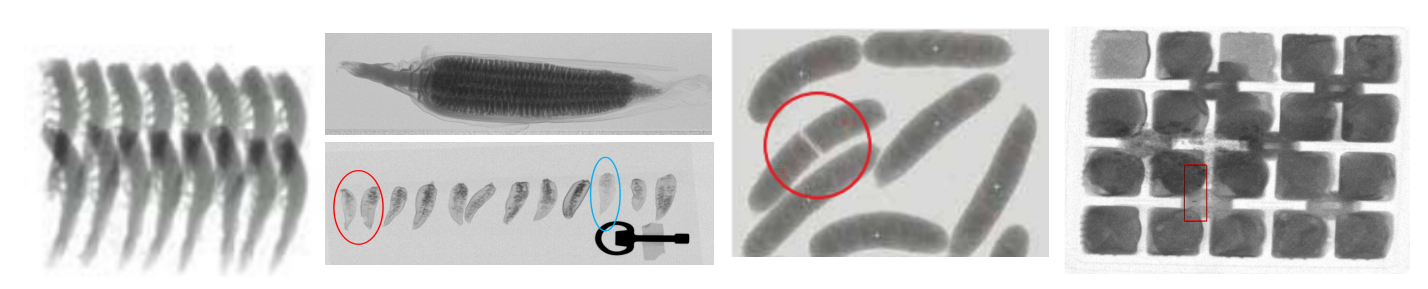

    X-ray images

    UNX4015N-xray


    Specificaitions


    Equipment
    Features
    Dimension1168(W)X985(D)X1510(H)mm
    Machine weight500kg
    X-ray tube80-120kv/210-480W
    Power SupplyAC 110/220V, 50/60Hz
    Max. Loading weight10kg
    X-ray detectorDiode array with 0.4mm resolution
    Channel size400mm(W)*150mm(H)
    Conveyor Speed10-60M/min
    Heavy load Conveyor Speed10-40M/min
    Operating Range10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing
    CapabilityDetection AccuracySUS BALL≥ø0.3mm
    SUS wire≥ø0.2*2mm
    Glass ball≥ø1.0mm
    Ceramic ball≥ø1.0mm
    System ComputerCommunications1*LAN,2*USB
    Industrial PC17"LCD touch screen;Windows 10
    Optional configurationRejector

    Sound-Light alarm, flipper,dropout,air jet,

    Pusher,chute,shuttle

    OtherIngress protectionConveyor: IP66, Others: IP65
    X-Ray Safety<1μSv/h

    Dimensions and Appearance

    UNX4015N-footprint
