Wire Harness Quality Detection AX7900 Electronics Unicomp X Ray Equipment

Description of IC X-Ray machine AX7900:

90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 420mm x 420mm , max. detection area 380 x 380mm, with ~300X System Magnification.

APPLICATION of IC Xray machine AX7900:

• LED, SMT, BGA, CSP, Flip Chip Inspection.
• Semiconductor, Packaging components, Battery Industry.
• Electronic components, Auto parts, Photovoltaic Industry.
• Aluminum Die Casting, Moulding Plastic.
• Ceramics, Other Special Industries

FEATURES of IC Xray machine AX7900:

• 90KV 5μm X-ray tube, FPD Detector.
• Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).
• Motion controls include X/Y table motion plus Z-axis tube and detector movement, ±60° tilt motion (option).
• Multi-function DXI image processing system.
• X/Y programming function for multiple image inspection routines
• Max. loading area 420mm x 420mm, max. detection area 380 x 380mm, with ~300X System Magnification.
• BGA void/area auto-measurement plus report generation.

Technical Specifications of AX7900

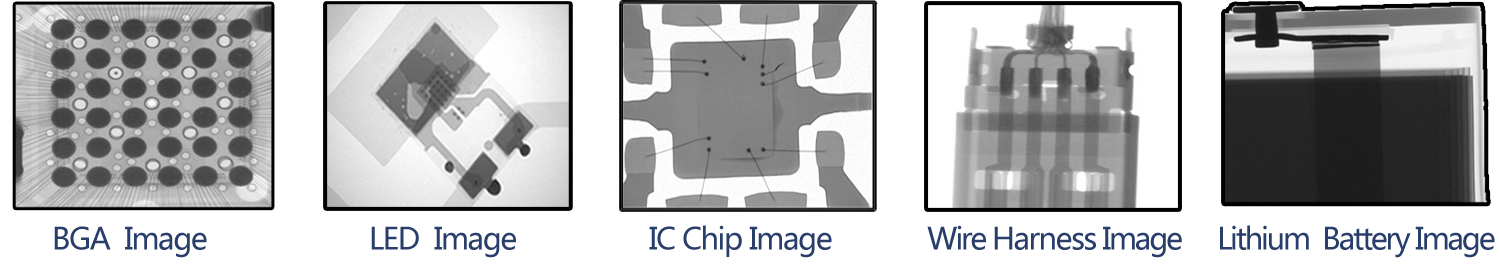

Inspection Images of IC X-Ray machine AX7900:

X-ray Intelligent Detection System Integrator (Testing Equipment + Industrial Cloud Tracking System)

Shenzhen Unicomp Technology was incorporated in 2002. It is a national-level high-tech enterprise which involved in the R&D and manufacturing of X-ray technology and intelligent detection equipment. Unicomp has become the leading enterprise in world wide X-ray industry. This technology is widely applied in Public Security, EV Lithium battery,SMT PCBA EMS, IC, Semiconductor, Solar Photovoltaic, LED, Connector, Automotive Casting Parts, Wheel, Tires, Pipe welding, Food and Beverage, Pressure vessel industry etc.

Unicomp Technology has a dedicated pool of local and foreign senior professional R&D engineers with extensive experience in high-level science and technology. The company is undertaking major national special project (namely “02” project and “863” project) and X-ray detecting equipment R&D in new fields of application. It also works closely with The Chinese academy of sciences, Tsinghua University, etc. to advance the core technology of X-ray imaging. Presently Unicomp has submitted a total of 432 patents with 319 authorized. Unicomp has obtained numerous management system certifications, such as ISO 9001 quality management system, ISO 14001 environmental management system, OHSAS18001 occupational health & safety management system, as well as ISO27001 information safety management system.

Today, Unicomp Technology has three R&D /Manufacturing sites exceeding 60,000㎡ respectively located at Wuxi/Jiangsu Province, Shenzhen/Guangdong Province, and Chongqing. Our sales and service centers are located all across China including Beijing, Shenyang, Tianjin, Xi'an, Qingdao, Wuhan, Chengdu, Ningbo, Xiamen and etc. The company has also penetrated into the international market with sales and service support in the USA, Canada, Mexico, Brazil, Germany, United Kingdom, France, Italy, Spain, Australia, Hungary, Romania, Russia, Poland, Uzbekistan, South Africa, Morocco, Tunisia, Turkey, UAE, India, Singapore, Malaysia, Thailand, Vietnam, Philippines, Taiwan, Hong Kong. This international connection has helped Unicomp to be recognized as a Global Force in today’s X-ray industry. Today “UNICOMP” is a hallmark brand in the industry both at home and abroad.

Unicomp Technology upholds its Integrity, Deploitation, and Excellence in the business is committed to meeting the highest level of International Standards and promises to be a responsive partner with all of our customers. This philosophy has enabled Unicomp to generated a strong Global customer base of many International Renowned companies including Flextronics, Foxconn, JABIL, Elcoteq, Philips, GM, Bosch, TRW, Delphi, ABB, Continental, Creation technologies, Salcomp, Selcom, Computime, Emerson, LEAR, V.S. Industy, Microtronics, SVI, Toshiba, NEC, Canon, Olympus, OMRON, SANYO, Fujitsu, Honda Lock, Samsung, LG, Amphenol, Littelfuse, Murata, KEMET, ROHM, Hybrionic, Cooper, ELRAD, Sumida, ELDOR, USI, Inventec, AELTA, PRIVAX, LITEON, Sensata, LuXshare, LENS, AAC Technologies, SANGSHIN ELECOM, Hisense, Skyworth, KONKA, TCL, ZTE, CHANGHONG, WINGTEC, DBG, BYD, VIVO, HIKVISION, GOOD-ARK, DESAY SV, CATL, Panasonic, Sony, Boston Power, BAK, GUOXUAN HIGH-TECH, Sunwoda, Coslight, TENPOWER, BMW, Tesla, Audi, CHANGAN, DONGFENG Motor, Honda, EATON, Turkey MMS, SF Express just to name a few.
