High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E

    Buy cheap High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E from wholesalers

    Buy cheap High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E from wholesalers
    • Buy cheap High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E from wholesalers

    High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : UNX6040E
    Certification : CE, FDA
    Price : can negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 300 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    High Resolution X Ray Security Scanner Unicomp Baggage Screening Equipment UNX6040E

    Metro Museum Expo Center Security X-Ray Scanner Machine UNX6040E


    Emission: Extremely low radiation dose adhering to all International Safety Standards.


    Environment: New advanced lead curtain pressure membrane technology effectively eliminating secondary lead (Pb) pollution.


    Power: Penetration equivalence of up to a 34mm steel plate.


    Operation: Intuitive operator interface and media interface for quick learning and optimization of the machine.


    Software/Imaging: Robust software platform with intuitive control interface. Clean and crisp image presentation meeting all International Standards.


    Traceability: Cutting edge Cloud traceability functions from initial product scan to final customer acceptance ensuring full safety throughout the process.


    Support: A full suite of customer support including; remote technical support, direct access to the Cloud, and real time monitoring of machine technical functions/operation.


    The UNX Series X-ray security detection machine release is a dynamic project associated with our Unicomp Technology Research and Development Manufacturing Division. Our full range of security machines are designed to address multiple safety requirements including internal detection of luggage, backpacks and express courier packages. The UNX Series machines are also effective for port logistics transportation, civil aviation, customs control, conference centers, hotels, large cultural and sports activities, plus express logistics. All of our machine platforms include state of the art industrial designs, high tech appearance and the most advanced Cloud traceability software in the industry.


    System ParametersDimensions1260mm(L)×910mm(W)×1240mm(H)
    Tunnel Size600mm(W)×400mm(H)
    Weight390kg
    Conveyor Height610±10mm
    Inspection Speed0.22m/s
    Max.Load Weight100Kg(Even distribution)
    Resolution40AWG ( φ= 0.0787 mm metal wire )
    Penetration36mm (Typical), 34mm (Standard)
    Radiation SafetyMeets film safety ISO1600
    X-ray Dose Rate<0.42μGy/h (5cm away from the housing)
    X-ray GeneratorAnode Voltage140Kv-160kV( Adjustable)
    Cooling CycleOil Cooling 100%
    Single Inspection Dose<1.2μGy
    Imaging SystemX-ray DetectorPhotodiode
    Gray Level4096
    Monitor17’’
    Image Processing SystemImage Enhancement

    *Black and white *Inverse *High-energy penetration *Low-energy penetration *Super-enhancement *Elimination of organic or inorganic substances *Variable absorption rate

    *Pseudo-color *Arbitrary selection ( user selected ROI zoom ) ( 64X image magnification/no loss of resolution )

    RecognitionOrange for organic matter, blue for inorganic, green for metal and compound
    Image Playback50 inspected images could be replayed
    Storage CapacityNo less than 100 thousand pieces of image
    Additional FeaturesStandard Functions*Date/time display *Baggage counter *User management *System operation clock *X-ray on clock *POST *Image storage & retrieval *Diagnosis & maintenance *Dual-scan *Image recognition trainging *Cloud data storage and analysis
    Optional Functions*High density area alarm *Explosives and drugs auxiliary examination *Dangerous goods image insertion
    Installation RequirementsOperation/Storage Temperature0~40℃,-5~50℃
    Humidity10%~90%(No condensation)
    Power Supply220VAC±5% 50Hz/60Hz /1KW

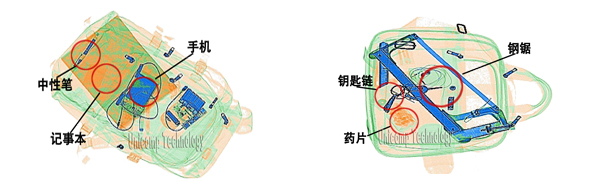

    Inspection Images:

    UNX6040E.pdf
