CSP BGA X Ray Scanner Machine 100KV FPD Microfocus Closed Tube AX8500

    Buy cheap CSP BGA X Ray Scanner Machine 100KV FPD Microfocus Closed Tube AX8500 from wholesalers

    Buy cheap CSP BGA X Ray Scanner Machine 100KV FPD Microfocus Closed Tube AX8500 from wholesalers
    • Buy cheap CSP BGA X Ray Scanner Machine 100KV FPD Microfocus Closed Tube AX8500 from wholesalers

    CSP BGA X Ray Scanner Machine 100KV FPD Microfocus Closed Tube AX8500

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : AX8500
    Certification : CE, FDA
    Price : can negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 300 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    CSP BGA X Ray Scanner Machine 100KV FPD Microfocus Closed Tube AX8500

    High resolution FPD with microfocus closed tube AX8500 X-ray system from Unicomp for LED inner bubble and void testing


    Technical Parameters and Specifications


    System Summary
    Footprint1370(W)×1300(D)×1700(H)mm
    Machine Weight1600 kg
    Power SupplyAC 110~220V, 50/60Hz
    Plywood Packing Size1750(W)×1500(D)×2000(H)mm
    Packing Weight1800 kg
    Power Consumption2.0 kW
    X-Ray Tube
    Tube TypeSealed
    Max. Power25W
    Voltage0~110kV (Adjustable)
    Focus Spot Size5μm
    Imaging System
    DetectorFlat Panel Detector (FPD)
    Pixel Size85μm
    Effective Detection Area130*130mm
    Frame Rates20fps
    Pixel Matrix1536*1536
    System Magnification1600X
    Software
    Auto-measuringBGA Soldering Voids Auto-measuring and Support Data/Graphic Output
    Multiple Measuring ToolsSupport Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
    CNC ModeCNC Programmable Inspection, Easy Operation and User Friendly
    Real-time DisplayReal-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
    NavigationConvenient Target Point Positioning System
    Motion Control System
    Movement ControlJoystick, Keypad & Mouse
    Max. Loading Area/WeightФ570mm / 10kg
    Max. Inspection Area450*450mm
    Oblique ViewsMax. 55° Filting (FPD) / 360° Rotation (Table)
    Manipulator6-axis with X1 / X2 / Y / Z1 / T (55°) /R (360°)
    Industrial PC
    Monitor22’’ FHD LCD Display
    System OSWindows 10 64bit
    Hard disk1TB
    RAM8GB
    CPU modelIntel i7 Processor
    Other Features
    Energy SavingX-Ray Auto-off when it's out of work over than 5 minutes
    Safety OperationElectromagnetic Interlock and warning Light
    Authority ManagementPassword Management
    X-Ray Safety<1μSv/h (Meets All International Standards)
    * Specifications are subject to change without notice, All trademarks are the property of the system maker.


    Applications:


    Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small
    Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.

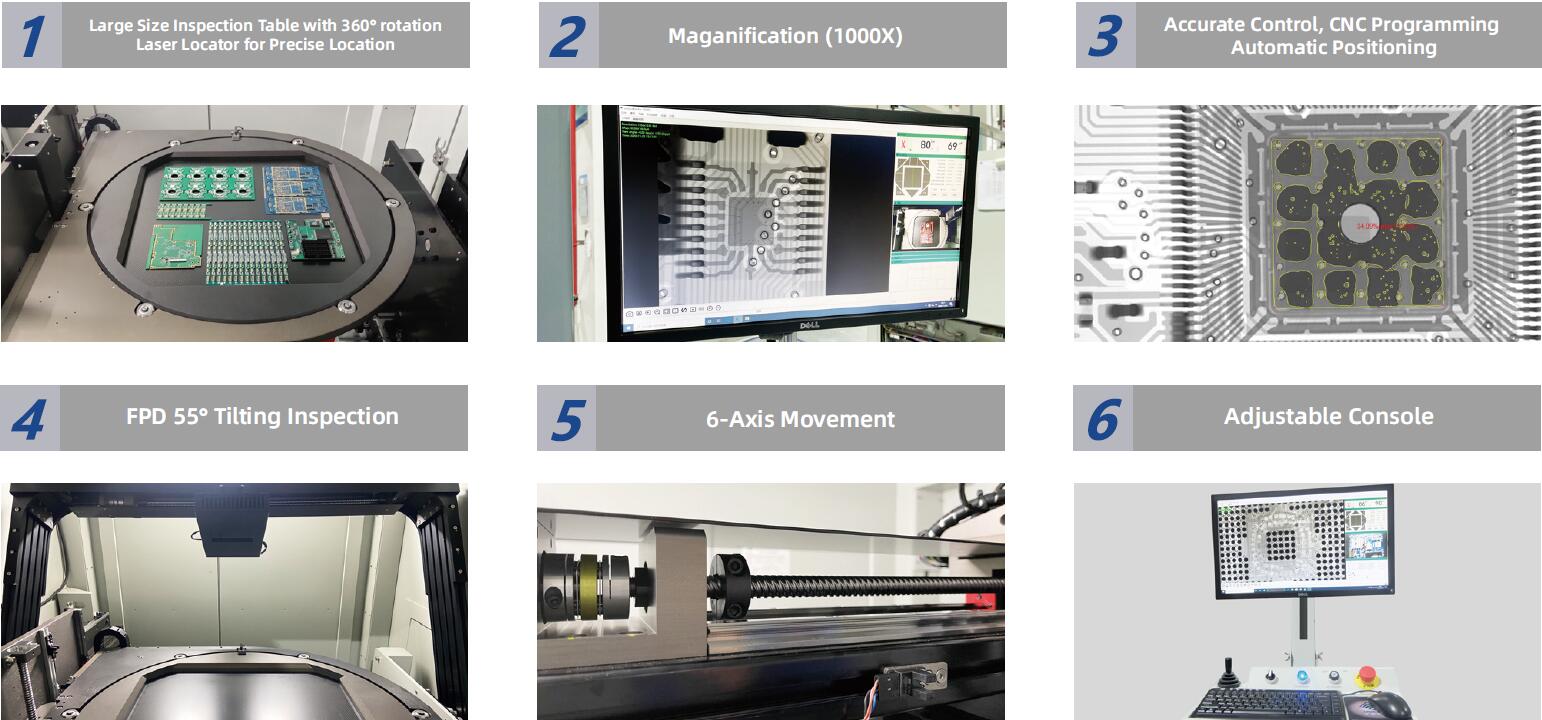

    Functions and Features

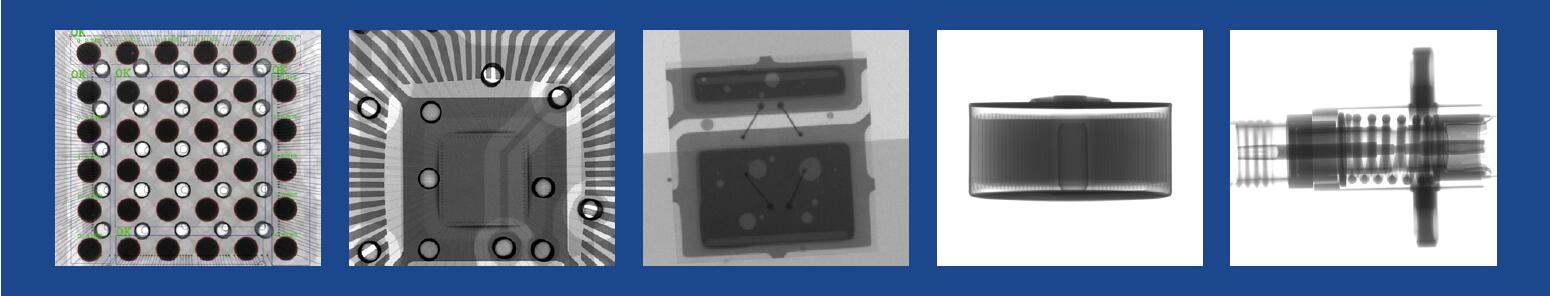

    Inspection Images:
