Applying 5micro closed tube AX8200 X-ray for Automotive Electronics Modules quality defects control

Other Special Industries.

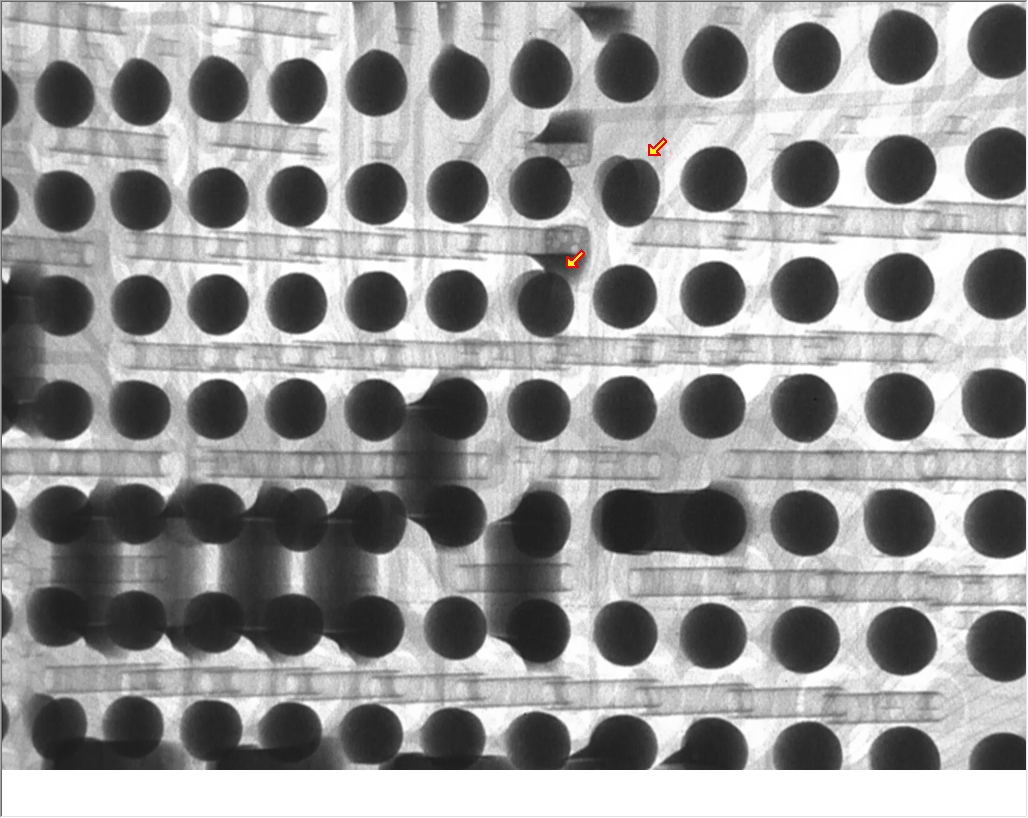

Inspection Images:

Features:

● 100KV 5μm X-ray tube, image intensifier with 2 mega pixels CCD camera.
● Motion controls include: ±60° tilt motion, X/Y table motion plus Z axis tube and detector movement.
● Multi-function DXI image processing system
● X/Y programming function for multiple image inspection routines
● Max. loading area 510mm x 420mm, max. detection area 435 x 385mm with ~300X System Magnification.
● BGA void/area auto-measurement plus report generation.

Applications:

BGA , CSP , LED , Flip Chip , Semiconductor,
Battery Industry , Small Metal Casting,
Electronic Connector Module,
Aerospace Components , Photovoltaic Industry,

The AX-8200 machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the AX-8200 is capable of addressing small and large volume factory requirements. (Contact us for details)

X-ray Intelligent Detection System Integrator (Testing Equipment + Industrial Cloud Tracking System)

Shenzhen Unicomp Technology was incorporated in 2002. It is a national-level high-tech enterprise which involved in the R&D and manufacturing of X-ray technology and intelligent detection equipment. Unicomp has become the leading enterprise in world wide X-ray industry. This technology is widely applied in Public Security, EV Lithium battery,SMT PCBA EMS, IC, Semiconductor, Solar Photovoltaic, LED, Connector, Automotive Casting Parts, Wheel, Tires, Pipe welding, Food and Beverage, Pressure vessel industry etc.

Unicomp Technology has a dedicated pool of local and foreign senior professional R&D engineers with extensive experience in high-level science and technology. The company is undertaking major national special project (namely “02” project and “863” project) and X-ray detecting equipment R&D in new fields of application. It also works closely with The Chinese academy of sciences, Tsinghua University, etc. to advance the core technology of X-ray imaging. Presently Unicomp has submitted a total of 432 patents with 319 authorized. Unicomp has obtained numerous management system certifications, such as ISO 9001 quality management system, ISO 14001 environmental management system, OHSAS18001 occupational health & safety management system, as well as ISO27001 information safety management system.

Today, Unicomp Technology has three R&D /Manufacturing sites exceeding 60,000㎡ respectively located at Wuxi/Jiangsu Province, Shenzhen/Guangdong Province, and Chongqing. Our sales and service centers are located all across China including Beijing, Shenyang, Tianjin, Xi'an, Qingdao, Wuhan, Chengdu, Ningbo, Xiamen and etc. The company has also penetrated into the international market with sales and service support in the USA, Canada, Mexico, Brazil, Germany, United Kingdom, France, Italy, Spain, Australia, Hungary, Romania, Russia, Poland, Uzbekistan, South Africa, Morocco, Tunisia, Turkey, UAE, India, Singapore, Malaysia, Thailand, Vietnam, Philippines, Taiwan, Hong Kong. This international connection has helped Unicomp to be recognized as a Global Force in today’s X-ray industry. Today “UNICOMP” is a hallmark brand in the industry both at home and abroad.

Unicomp Technology upholds its Integrity, Deploitation, and Excellence in the business is committed to meeting the highest level of International Standards and promises to be a responsive partner with all of our customers. This philosophy has enabled Unicomp to generated a strong Global customer base of many International Renowned companies including Flextronics, Foxconn, JABIL, Elcoteq, Philips, GM, Bosch, TRW, Delphi, ABB, Continental, Creation technologies, Salcomp, Selcom, Computime, Emerson, LEAR, V.S. Industy, Microtronics, SVI, Toshiba, NEC, Canon, Olympus, OMRON, SANYO, Fujitsu, Honda Lock, Samsung, LG, Amphenol, Littelfuse, Murata, KEMET, ROHM, Hybrionic, Cooper, ELRAD, Sumida, ELDOR, USI, Inventec, AELTA, PRIVAX, LITEON, Sensata, LuXshare, LENS, AAC Technologies, SANGSHIN ELECOM, Hisense, Skyworth, KONKA, TCL, ZTE, CHANGHONG, WINGTEC, DBG, BYD, VIVO, HIKVISION, GOOD-ARK, DESAY SV, CATL, Panasonic, Sony, Boston Power, BAK, GUOXUAN HIGH-TECH, Sunwoda, Coslight, TENPOWER, BMW, Tesla, Audi, CHANGAN, DONGFENG Motor, Honda, EATON, Turkey MMS, SF Express just to name a few.
