    Unicomp Inline Electronics X Ray Machine 3.5kW For IGBT Semicon Soldering

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : LX2000
    Certification : CE, FDA
    Price : can negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 300 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Unicomp Inline Electronics X Ray Machine 3.5kW For IGBT Semicon Soldering

    Unicomp Inline Electronics X Ray Machine 3.5kW For IGBT Semicon Soldering


    Unicomp High Speed Inline 2D X-ray Inspection machine with cutting edge AI Algorithm For IGBT Semicon soldering void checking


    Technical Parameters and Specifications

    System Summary
    Footprint2595(W)×1392(D)×1992(H)mm
    Machine Weight1900 kg (X-Ray) / 700kg (Conveyor)
    Power SupplyAC 110~220V, 50/60Hz
    Plywood Packing Size180(W)×170(D)×190(H)cm (X-Ray) 150(W)×105(D)×120(H)cm (Conveyor)
    Packing Weight2000kg (X-Ray) / 800kg (Conveyor)
    Power Consumption3.5 kW
    X-Ray Tube
    Tube TypeSealed
    Max. Power8W
    Voltage0~90kV (Adjustable)
    Focus Spot Size5μm
    Imaging System
    DetectorFlat Panel Detector (FPD)
    Pixel Size85μm
    Effective Detection Area130*130mm
    Frame Rates20fps
    Pixel Matrix1536*1536
    System Magnification200X
    Software
    Auto-measuringAuto Inspection and Analysing for Ok & NG Components
    CNC ModeCNC Programmable Inspection, Easy Operation and User Friendly
    ReworkSupport Rework Database Management System
    Data ConnectionSupport MES/ERP/SPC System
    NavigationConvenient Target Point Positioning System
    Motion Control System
    Movement ControlJoystick, Keypad, Mouse & Touch Panel (PLC)
    Adjustable Tunnel width80~350mm
    Max. Inspection Sample400*350mm / 10kg
    Min . Inspection Sample100*80mm
    ManipulatorAuto Inline System
    Industrial PC
    Monitor22’’ FHD LCD Display
    System OSWindows 10 64bit
    Hard disk1TB
    RAM8GB
    CPU modelIntel i7 Processor
    Other Features
    Energy SavingX-Ray Auto-off when it's out of work over than 5 minutes
    Safety OperationElectromagnetic Interlock, Warning Light
    Authority ManagementPassword Magnagement
    X-Ray Safety<1μSv/h (Meets All International Standards)
    * Specifications are subject to change without notice, All trademarks are the property of the system maker.


    Functions and Features

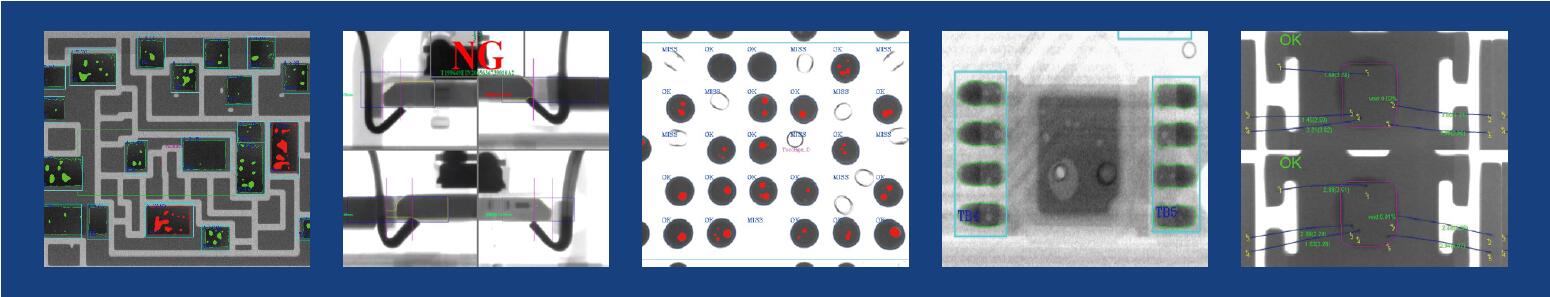

    Inspection images


    Application

    Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small
    Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.


    Our Services

    Help customer analyze product project and provide detection solution.

    Freely sample detection test.

    Provide professional detection solution.

    Skilled jig design services.

    Provide shipping/delivery information checking service.

    One year guarantee, all life maintain promise.

    24 hours feedback speed by email of others.
