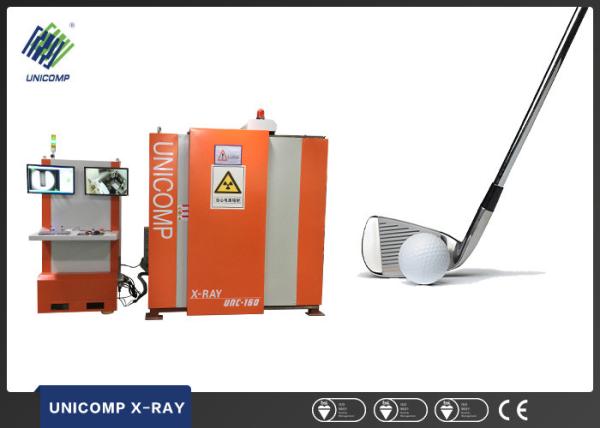

160KV Tube Voltage Casting NDT X Ray Machine Golf Clubs Inside Quality Inspection

    Buy cheap 160KV Tube Voltage Casting NDT X Ray Machine Golf Clubs Inside Quality Inspection from wholesalers

    Buy cheap 160KV Tube Voltage Casting NDT X Ray Machine Golf Clubs Inside Quality Inspection from wholesalers
    • Buy cheap 160KV Tube Voltage Casting NDT X Ray Machine Golf Clubs Inside Quality Inspection from wholesalers

    160KV Tube Voltage Casting NDT X Ray Machine Golf Clubs Inside Quality Inspection

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : UNC160
    Certification : CE
    Price : can negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    160KV Tube Voltage Casting NDT X Ray Machine Golf Clubs Inside Quality Inspection

    Metal Gas X Ray Machine 160KV Auto Parts NDT Machine in Cambodia


    Our industrial solutions have a wide range of advantages


    Sophisticated proprietary image analyzing algorithms which allow to realize reliable automatic detection systems of non-conformities.


    Statistics, computer assisted measurement, post-analysis, remote workstations, archiving, integration into customer’s network and production management systems.


    Modular design, broad range of accessories and options for maximum compliance with customer’s production and quality assurance processes


    Flexibility and compact design our industrial installations can be adopt into the most manufacturing chains in combination with operator or automatic control.


    Ultra low radiation dose is an effective solution for scanning different automotive parts loaded on the hanging conveyor line.



    Applications:


    ●Wheel,Tires and Metal parts
    ●Steel pipe,Cylinder and Wood

    ●Cast parts and pressure Vessels


    System ParametersDimensions2100mm*1549mm*2468mm(L*W*H)
    Equipment weight3.5T
    Power6KW
    Maximum penetration(AL/FE)100mm/20mm
    Detection rangeΦ500*800mm
    Load weight50kg
    Work environment5-40° ≤80%HR
    Install powerThree-phase five wire system AC380V
    X-ray leakage dose rate≤1uSv/h
    X-ray GeneratorTube voltage160kV
    Power480W
    Focal size0.5mm
    DetectorImage area145mm x 145mm
    Resolution3.0LP/mm
    Detector ( Selection FPD )Image area17’’x17’’
    Pixel matrix3072mm*3072mm
    Pixel size139μm
    Frame rate9fps(1x1)30fps(2x2)
