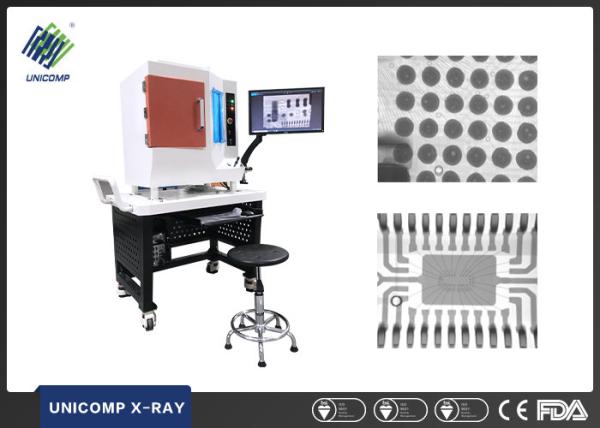

Bench Top Welding Voids 0.5kW 90kV X Ray Inspection Machine 5µm

    Buy cheap Bench Top Welding Voids 0.5kW 90kV X Ray Inspection Machine 5µm from wholesalers

    Buy cheap Bench Top Welding Voids 0.5kW 90kV X Ray Inspection Machine 5µm from wholesalers
    • Buy cheap Bench Top Welding Voids 0.5kW 90kV X Ray Inspection Machine 5µm from wholesalers

    Bench Top Welding Voids 0.5kW 90kV X Ray Inspection Machine 5µm

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : CX3000
    Certification : CE, FDA
    Price : can negotiate
    Payment Terms : T/T, L/C
    Supply Ability : 30 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Bench Top Welding Voids 0.5kW 90kV X Ray Inspection Machine 5µm

    Application

    • SMT, BGA, CSP, Flip Chip, LED Detection,
    • Semiconductor, Packaging components, Battery Industry,
    • Electronic components, Automotive parts, Photo-voltaic,
    • Aluminium Die-casting, Moulding Plastic, Ceramics, other special industries.

    Features

    • 90kV 5µm closed X-ray tube
    • High resolution FPD with 3-axis motion system, meet basic inspection demands
    • Navigation in windows, target tracking conveniently
    • Max. loading area 235mm×205mm mm, max. inspection area 165mm×190mm, with 200X Magnification

    X-ray Images


    Technical Specifications


    ItemDescriptionSpecifications
    X-Ray TubeMax. Voltages, Type90kV, Closed
    Power Consumption8W
    Focal Spot Size5 μm
    Magnification200X
    DetectorDetector TypeFPD
    Resolution101 LP/cm
    Effective Area

    58mm×54mm

    System ComputerOperating SystemIndustrial PC, Win 7, i7 Processor
    Monitor22” LCD
    SoftwareUser InterfaceUnicomp Multi-function DXI image processing system
    Working PlatformMax. Loading Area235mm×205mm
    Max. Inspection Area190mm×165mm
    Max. Loading Weight5kg
    Movement ControlJoysticks, Mouse and Keypads
    RotationOption 360° tilt fixture
    NavigationCameraHD Camera, Laser point
    AxisManipulator3-axis with X / Y / Z
    Equipment FeaturesPower SupplyAC 110~220V (±10%) 50Hz, 1kW
    Outline Dimensions750(L)×570(W)×890(H)mm
    System Weight300 kg
    WarrantyOne year warranty , free replacement the parts due to original manufacturer's defect, but expect of man-made damages and force majeure
    Optional AccessoriesRotation Jig

    X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA - CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2"from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards,
