    High Magnifications PCB X-Ray Machine Unicomp AX9100MAX For Electronics IC Components Bonding Wire Inspection

    Ask Lasest Price
    Brand Name : UNICOMP
    Model Number : AX9100max
    Certification : CE, FDA
    Price : can negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 100set/montrh
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    High Magnifications PCB X-Ray Machine Unicomp AX9100MAX For Electronics IC Components Bonding Wire Inspection

    Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.


    • Application Fields




    • Functions and Feature




    • Inspection Image



    System Summary
    Footprint1455(W)×1760(D)×1945(H)mm
    Machine Weight2400 kg
    Power Supply
    AC 110~220V, 50/60Hz
    Packaging Dimension1710(W)×1950(D)×1875(H)mm
    Packing Weight2600 kg
    Power Consumption4 kW
    X-Ray Tube
    Tube Type TypeSealed type
    Max. Power Output65W
    Voltage0~130kV (Adjustable)
    Focus Spot Size≤7μm
    Imaging System
    DetectorHigh Resolution FPD
    Pixel Size84μm
    Effective Detection Area129*129mm
    Frame Rates20fps
    Pixel1536*1536
    System Magnification1600X
    Software
    One-click Zoom in & outFast & Automatic navigation of ROI region
    Fixed-point following during FPD tiltingTable automatic following while Axis tilting seperately
    Algorithms For Image Super-Resolution ReconstructionIntelligently improve the overall image clarity with one-click
    Automatic images comparisonIntelligently adjust overall image contrast with one-click
    Variety of filter processing algorithmsSharpening, enhancement, color reversal, denoising image preprocessing functions
    Motion Control System
    Movement Control MethodDual Joystick, Keypad & Mouse
    Max. Loading sizeФ620mm
    Max. Inspection size600*450mm
    Tilting InspectionMaximum 60°(Tube & Detector)
    Objective StageHorizontal Rotation 360°
    Industrial PC
    Monitor(Dual)27 "4K HD display
    Operating SystemWindows 10 64bit
    Hard disk1TB
    RAM16G
    CPU modelIntel i7 Processor
    Other Features
    Door OpenManually
    Safety OperationElectromagnetic Interlock, Warning Light and Real-time Radiation Leakage Monitor
    Authority ManagementFingerprint Access Management System, and Support Password Accessing
    X-Ray Safety<1μSv/h (Meets All International Standards)

    * Specifications are subject to change without notice, All trademarks are the property of the system maker.

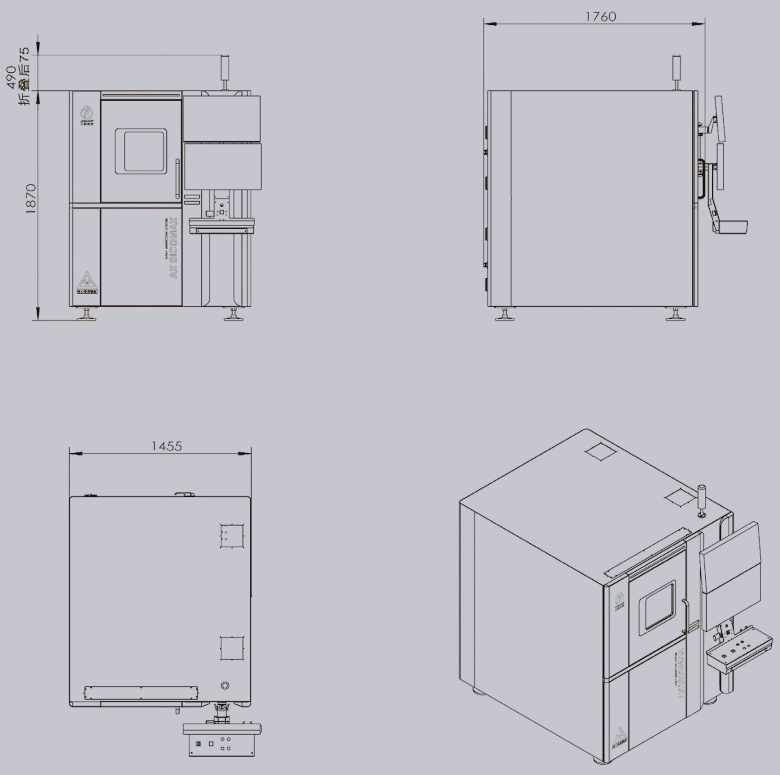

    • Dimensions and Appearance
